Over the years manufacturers have changed the wire colors on vehicles. The below diagrams show what vehicle manufacturer has as each wire function:

Standard Generic Wire Color Wire Function Diagram Cars Trucks Wiring

Standard Wire Function Dual Bulb System	Wire Color
Right Turn & Brake Lights	Green
Left Turn & Brake Lights	Yellow
Tail Lights	Brown
Ground	White
Single Purpose System
Brake Lights	Use Converter
Backup Lights	Red
Electric Trailer Brakes	Connect To Blue Wire From Brake Controller

Ford Wire Function Wire Color Diagram

Standard Wire Function Dual Purpose Bulb System	Ford Wire Colour
Right Turn & Brake Lights	Orange with Blue Stripe
Left Turn & Brake Lights	Light Green with Orange Stripe
Tail Lights	Brown
Ground	Black or Grey

Single Purpose System
Brake Lights	Red with Green Stripe
Backup Lights	Black with Pink
Electric Trailer Brakes	Connect To Blue Wire From Brake Controller

GMC Wire Function Wire Color Diagram

Wire Function Dual Purpose Bulb System	GMC Wire Colour
Right Turn & Brake Lights	Green
Left Turn & Brake Lights	Yellow
Tail Lights	Brown
Ground	Black
Single Purpose System
Brake Lights	Pink or Light Blue
Backup Lights	Light Green
Electric Trailer Brakes	Connect To Blue Wire From Brake Controller

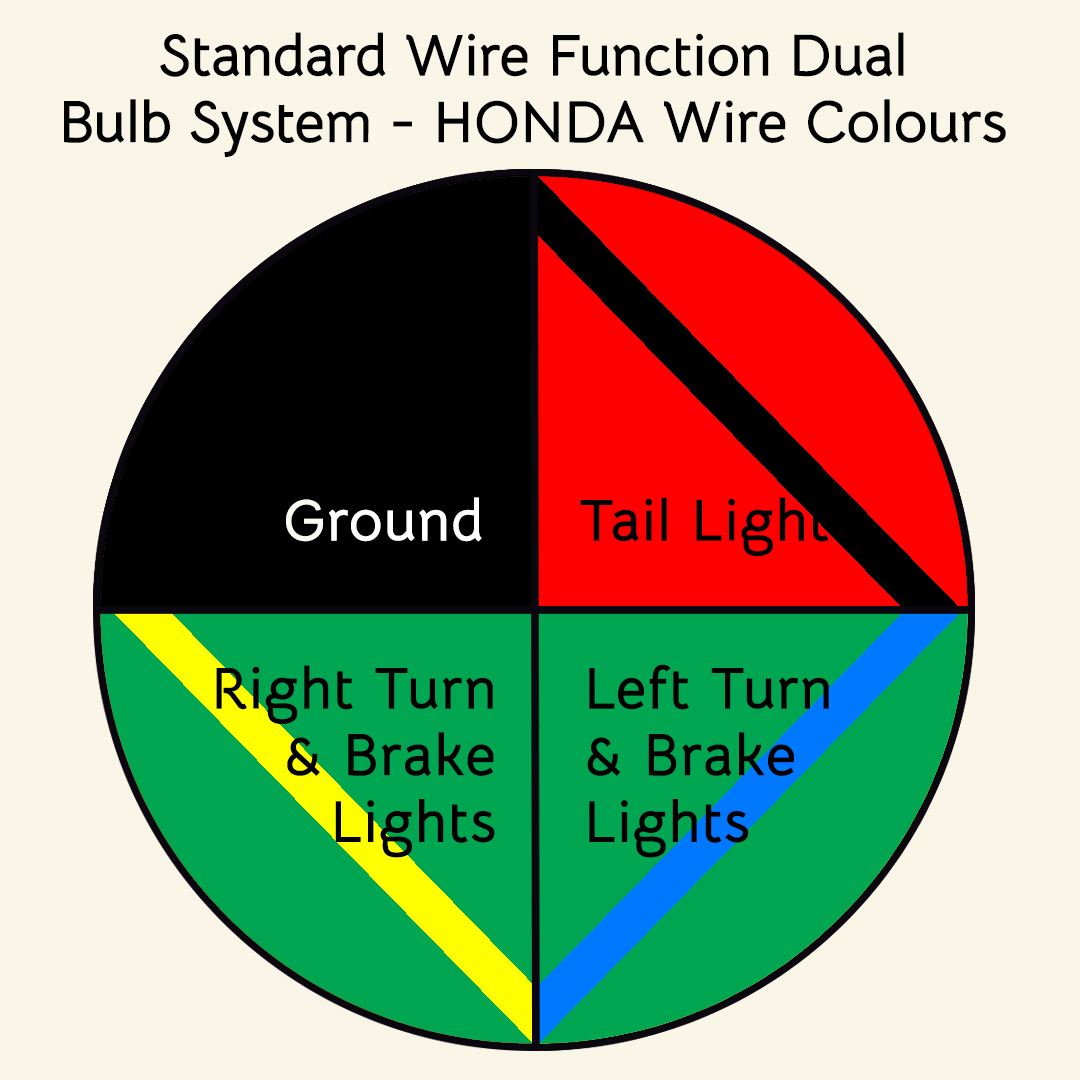

Honda Wire Color Wire Function Diagram

Wire Function Dual Bulb System	Honda Wire Colour
Right Turn & Brake Lights	Green with Yellow Stripe
Left Turn & Brake Lights	Green with Blue Stripe
Tail Lights	Red with Black Stripe
Ground	Black
Single Purpose System
Brake Lights	Green with White Stripe
Backup Lights	-
Electric Trailer Brakes	Connect To Blue Wire From Brake Controller

Jeep Wire Function Wire Color Diagram

Wire Function Dual Bulb System	Jeep Wire Colour
Right Turn & Brake Lights	Brown
Left Turn & Brake Lights	Grey with Black Stripe
Tail Lights	Blue
Ground	Black
Single Purpose System
Brake Lights	Blue with Black Stripe
Backup Lights	Brown
Electric Trailer Brakes	Connect To Blue Wire From Brake Controller

Mazda Wire Color Wire Function Diagram

Wire Function Dual Bulb System	Mazda Wire Colour
Right Turn & Brake Lights	Green with Yellow Stripe
Left Turn & Brake Lights	Black Stripe
Tail Lights	Green or Black Stripe
Ground	Black
Single Purpose System
Brake Lights	Green or Green with Red Stripe
Backup Lights	-
Electric Trailer Brakes	Connect To Blue Wire From Brake Controller

Toyota Wire Color Wire Function Diagram

Wire Function Dual Bulb System	Toyota Wire Colour
Right Turn & Brake Lights	Green with Yellow Stripe
Left Turn & Brake Lights	Green with Black Stripe
Tail Lights	Red with Green Stripe
Ground	Black or White
Single Purpose System
Brake Lights	Green with Red or White Stripe
Backup Lights	-
Electric Trailer Brakes	Connect To Blue Wire From Brake Controller

Note** It is recommended that a circuit tester be used on the tow vehicle's wiring harness to verify that the correct wire has been located for the proper function.
